Description
One (1) New Aftermarket Replacement 12 Volt Conversion Kit
Fits Fits FARMALL / Fits IH / Fits International Harvester Models:A, AV, B, BN, C, Super A, Super C, 100, 130, 200, 230. – All without cultivators
Power Units: U123, U2, U2A

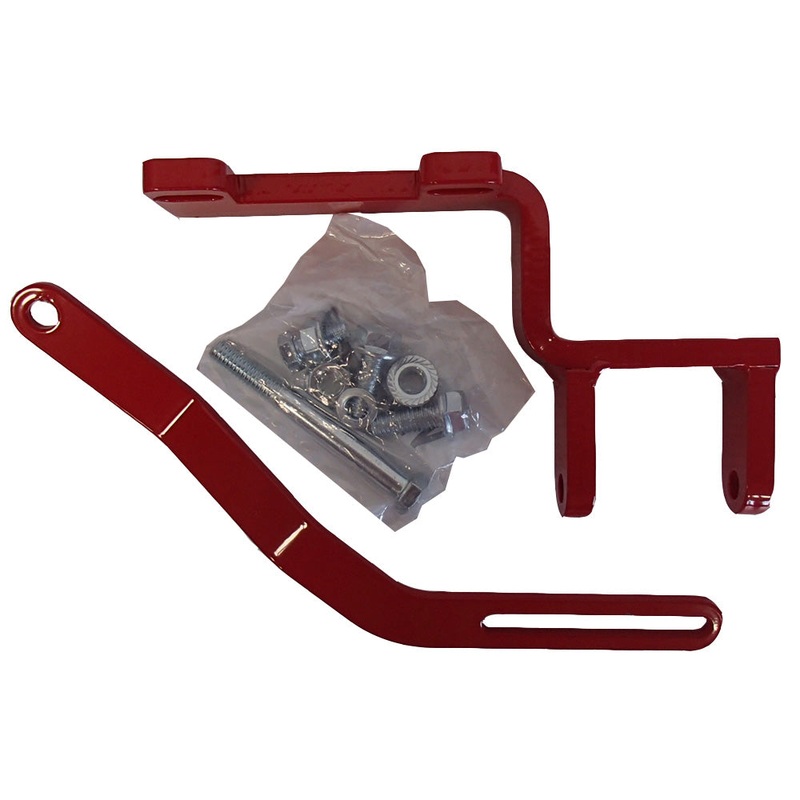

Kit Contains:63 Amp 1 Wire 12 Volt Alternator w/ Pulley12 Volt Distributor Coil w/Mounting Bracket2 Piece Alternator Bracket w/Mounting Hardware
Wiring Instructions:The 12 Volt Alternator is used to convert the 6 Volt system to a 12 Volt system. This alternator has a simple 1 wire hook up. All you will have to do i s run a wire from the alternator through ammeter to the positive side of the battery. You must rev the engine to 800 – 850 RPM in order for the unit to self excite.
Models This Part Fits:
100, 130, 200, Super A, Super CAdditional Information: Includes: (1) Internal Resistor Coil:12 VoltReplaces Part Numbers: A11074, A33438, A41820, G44808, 396547R91, 1115103, 1115339, 1115376, 1115380, 1115381, 1115385, 1115394, 1115396, 1115400, 178N, U505(1) Alternator: Clockwise Rotation12 Volt10SI 63 amp6-1/4″ Housing Diameter2-1/2″ Pulley Diameter5/8″ Belt Width6-3/8″ Center to Center Mounting Bolt PatternReplaces Part Numbers: 103798A1R, A45201, A45202, 10459509, 1100490, 1100491, 1100583, 1100587, 1102375, 1103183(1) Alternator Bracket Kit: All Without CultivatorsLower Bracket Is 2″ Between Tabs for Alternator Replaces Part Numbers: IHS2349
